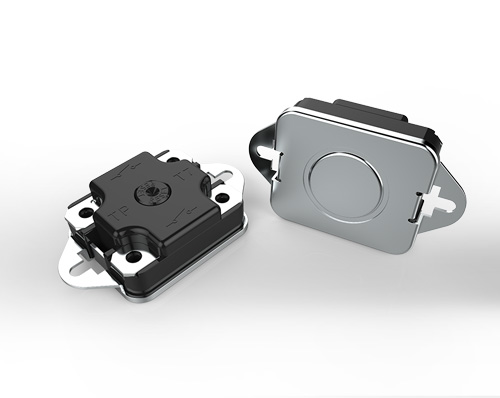

Manual reset, open on rise (normally closed)
Auto reset temp. is below zero degree; manually reset-table temp. is required below 30℃ from operating temp.
Double pole, single throw (DPST)
Welded construction for integrity of current-carrying components
Cost effective, compact, high reliability, ROHS compliant
Specifications
Operating temperature range: 40～150℃ (104～302°F)
Auto reset temp. Is below zero degree; manually reset-table temp. is required below 30℃ from operating temp.
Temperature tolerance: ±3.0K, ±4.0K, ±5.0K
Contact resistance: 50mΩor less
Electrical Rating:
Electrical rating | Agency approvals | |||||
VDE | UL | TÚV | CQC | Life cycles | Remarks | |
AC250V/10A | ● | ● | 10k | Ceramic housing | ||
AC250V/16A | ● | ● | 10k | |||
