Features

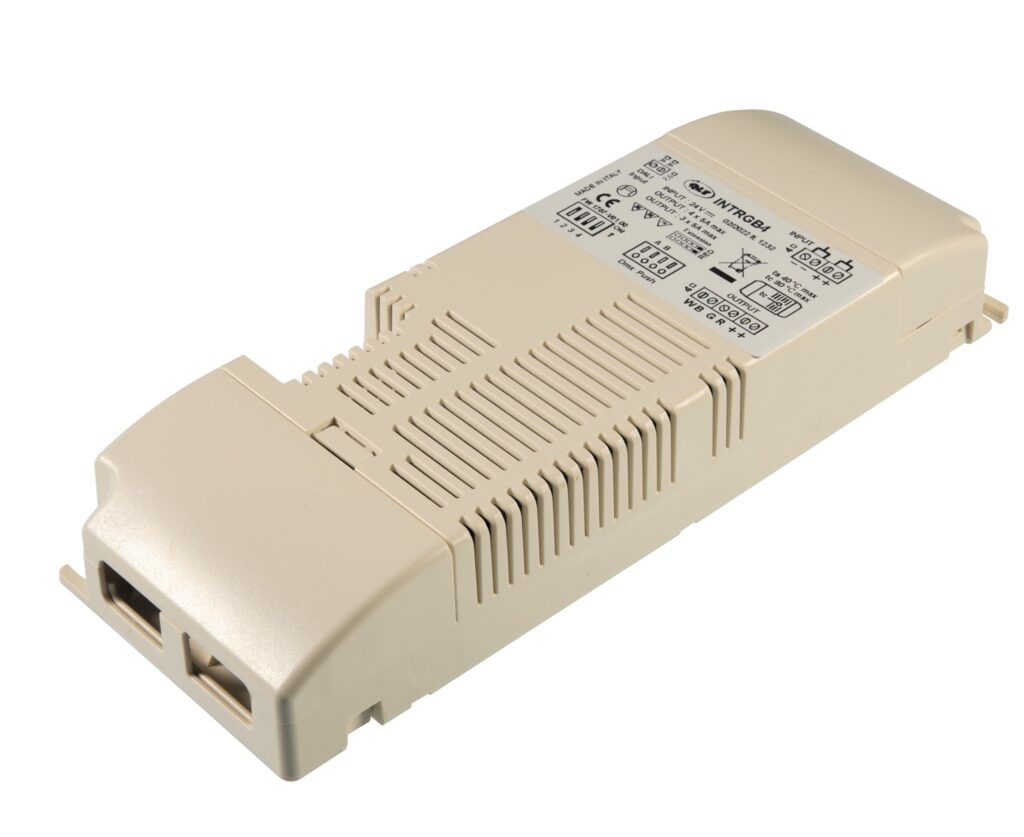

Interface for RGBW 4-channel and RGB 3-channel
- Control Interface – IP40 – Insulation class II
- Configuration by 3 or 4 output channels for RGB and RGBW
power leds - Constant voltage operation. Output 4 x 12/24V PWM o 3 x
12/24V PWM - Push-Button input: on, off and colour regulation by one or more push-buttons
- DMX and DALI inputs with self-test function and LED signal
- Regulation curve: linear or exponential
- DMX Resistor settable by dip switches
- Possible parallel connection up to 10 x interfaces
Product Sheet
Click here for pdf download
